An abacus, also called a counting frame, is a calculating tool used in many cultures long before electronic calculators were invented. Figure 70-1 shows the Japanese form of the abacus, called a soroban. Each wire represents a place in a positional numeral system, and the beads on the wire represent the digit at that place. For example, a soroban with two beads moved over on the rightmost wire and three beads moved over on the second-to-rightmost wire would represent the number 32. This program simulates a soroban. (The irony of using a computer to simulate a pre-computer computing tool is not lost on me.)

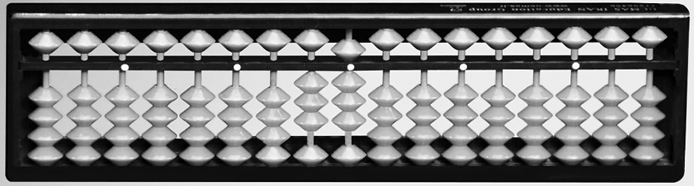

Figure 70-1: A soroban
Each column in the soroban represents a different digit. The rightmost column is the ones place, the column to its left is the tens place, the column to the left of that is the hundreds place, and so on. The Q, W, E, R, T, Y, U, I, O, and P keys along the top of your keyboard can increase the digit at their respective positions, while the A, S, D, F, G, H, J, K, L, and ; keys will decrease them. The beads on the virtual soroban will slide to reflect the current number. You can also enter numbers directly.
The four beads below the horizontal divider are “earth” beads, and lifting them up against the divider counts as 1 for that digit. The bead above the horizontal divider is a “heaven” bead, and pulling it down against the divider counts as 5 for that digit, so pulling down one heaven bead and pulling up three earth beads in the tens column represents the number 80. More information about abacuses and how to use them can be found at https://en.wikipedia.org/wiki/Abacus.
When you run soroban.py, the output will look like this:
Soroban - The Japanese Abacus
By Al Sweigart [email protected]
+================================+
I O O O O O O O O O O I
I | | | | | | | | | | I
I | | | | | | | | | | I
+================================+
I | | | | | | | | | | I
I | | | | | | | | | | I
I O O O O O O O O O O I
I O O O O O O O O O O I
I O O O O O O O O O O I
I O O O O O O O O O O I
+==0==0==0==0==0==0==0==0==0==0==+
+q w e r t y u i o p
-a s d f g h j k l ;
(Enter a number, "quit", or a stream of up/down letters.)
> pppiiiii
+================================+
I O O O O O O O | O O I
I | | | | | | | | | | I
I | | | | | | | O | | I
+================================+
I | | | | | | | | | O I
I | | | | | | | | | O I
I O O O O O O O O O O I
I O O O O O O O O O | I
I O O O O O O O O O | I
I O O O O O O O O O O I
+==0==0==0==0==0==0==0==5==0==3==+
+q w e r t y u i o p
-a s d f g h j k l ;
(Enter a number, "quit", or a stream of up/down letters.)
--snip--The displayAbacus() function accepts a number argument used to figure out where it should render beads on the abacus. The soroban always has exactly 80 possible locations for either 'O' beads or '|' rod segments, as marked by the curly braces ({}) in the multiline string on lines 127 to 139. Another 10 curly braces represent the digits of the number argument.
We need to create a list of strings to fill in these curly braces, going from left to right, top to bottom. The code in displayAbacus() will populate a hasBead list with a True value to display a 'O' bead and a False value to display a '|'. The first 10 values in this list are for the top “heaven” row. We’ll put a bead in this row if the column’s digit is 0, 1, 2, 3, or 4, since the heaven bead won’t be in that row unless the digit for that column is 0 to 4. We add Boolean values to hasBead for the remaining rows.
Lines 118 to 123 use hasBead to create an abacusChar list that contains the actual 'O' and '|' strings. When combined with numberList on line 126, the program forms a chars list that populates the curly braces ({}) for the multiline-string ASCII art of the soroban.
1. """Soroban Japanese Abacus, by Al Sweigart [email protected]
2. A simulation of a Japanese abacus calculator tool.
3. More info at: https://en.wikipedia.org/wiki/Soroban
4. This code is available at https://nostarch.com/big-book-small-python-programming
5. Tags: large, artistic, math, simulation"""
6.
7. NUMBER_OF_DIGITS = 10
8.
9.
10. def main():
11. print('Soroban - The Japanese Abacus')
12. print('By Al Sweigart [email protected]')
13. print()
14.
15. abacusNumber = 0 # This is the number represented on the abacus.
16.
17. while True: # Main program loop.
18. displayAbacus(abacusNumber)
19. displayControls()
20.
21. commands = input('> ')
22. if commands == 'quit':
23. # Quit the program:
24. break
25. elif commands.isdecimal():
26. # Set the abacus number:
27. abacusNumber = int(commands)
28. else:
29. # Handle increment/decrement commands:
30. for letter in commands:
31. if letter == 'q':
32. abacusNumber += 1000000000
33. elif letter == 'a':
34. abacusNumber -= 1000000000
35. elif letter == 'w':
36. abacusNumber += 100000000
37. elif letter == 's':
38. abacusNumber -= 100000000
39. elif letter == 'e':
40. abacusNumber += 10000000
41. elif letter == 'd':
42. abacusNumber -= 10000000
43. elif letter == 'r':
44. abacusNumber += 1000000
45. elif letter == 'f':
46. abacusNumber -= 1000000
47. elif letter == 't':
48. abacusNumber += 100000
49. elif letter == 'g':
50. abacusNumber -= 100000
51. elif letter == 'y':
52. abacusNumber += 10000
53. elif letter == 'h':
54. abacusNumber -= 10000
55. elif letter == 'u':
56. abacusNumber += 1000
57. elif letter == 'j':
58. abacusNumber -= 1000
59. elif letter == 'i':
60. abacusNumber += 100
61. elif letter == 'k':
62. abacusNumber -= 100
63. elif letter == 'o':
64. abacusNumber += 10
65. elif letter == 'l':
66. abacusNumber -= 10
67. elif letter == 'p':
68. abacusNumber += 1
69. elif letter == ';':
70. abacusNumber -= 1
71.
72. # The abacus can't show negative numbers:
73. if abacusNumber < 0:
74. abacusNumber = 0 # Change any negative numbers to 0.
75. # The abacus can't show numbers larger than 9999999999:
76. if abacusNumber > 9999999999:
77. abacusNumber = 9999999999
78.
79.
80. def displayAbacus(number):
81. numberList = list(str(number).zfill(NUMBER_OF_DIGITS))
82.
83. hasBead = [] # Contains a True or False for each bead position.
84.
85. # Top heaven row has a bead for digits 0, 1, 2, 3, and 4.
86. for i in range(NUMBER_OF_DIGITS):
87. hasBead.append(numberList[i] in '01234')
88.
89. # Bottom heaven row has a bead for digits 5, 6, 7, 8, and 9.
90. for i in range(NUMBER_OF_DIGITS):
91. hasBead.append(numberList[i] in '56789')
92.
93. # 1st (topmost) earth row has a bead for all digits except 0.
94. for i in range(NUMBER_OF_DIGITS):
95. hasBead.append(numberList[i] in '12346789')
96.
97. # 2nd earth row has a bead for digits 2, 3, 4, 7, 8, and 9.
98. for i in range(NUMBER_OF_DIGITS):
99. hasBead.append(numberList[i] in '234789')
100.
101. # 3rd earth row has a bead for digits 0, 3, 4, 5, 8, and 9.
102. for i in range(NUMBER_OF_DIGITS):
103. hasBead.append(numberList[i] in '034589')
104.
105. # 4th earth row has a bead for digits 0, 1, 2, 4, 5, 6, and 9.
106. for i in range(NUMBER_OF_DIGITS):
107. hasBead.append(numberList[i] in '014569')
108.
109. # 5th earth row has a bead for digits 0, 1, 2, 5, 6, and 7.
110. for i in range(NUMBER_OF_DIGITS):
111. hasBead.append(numberList[i] in '012567')
112.
113. # 6th earth row has a bead for digits 0, 1, 2, 3, 5, 6, 7, and 8.
114. for i in range(NUMBER_OF_DIGITS):
115. hasBead.append(numberList[i] in '01235678')
116.
117. # Convert these True or False values into O or | characters.
118. abacusChar = []
119. for i, beadPresent in enumerate(hasBead):
120. if beadPresent:
121. abacusChar.append('O')
122. else:
123. abacusChar.append('|')
124.
125. # Draw the abacus with the O/| characters.
126. chars = abacusChar + numberList
127. print("""
128. +================================+
129. I {} {} {} {} {} {} {} {} {} {} I
130. I | | | | | | | | | | I
131. I {} {} {} {} {} {} {} {} {} {} I
132. +================================+
133. I {} {} {} {} {} {} {} {} {} {} I
134. I {} {} {} {} {} {} {} {} {} {} I
135. I {} {} {} {} {} {} {} {} {} {} I
136. I {} {} {} {} {} {} {} {} {} {} I
137. I {} {} {} {} {} {} {} {} {} {} I
138. I {} {} {} {} {} {} {} {} {} {} I
139. +=={}=={}=={}=={}=={}=={}=={}=={}=={}=={}==+""".format(*chars))
140.
141.
142. def displayControls():
143. print(' +q w e r t y u i o p')
144. print(' -a s d f g h j k l ;')
145. print('(Enter a number, "quit", or a stream of up/down letters.)')
146.
147.
148. if __name__ == '__main__':
149. main()
Try to find the answers to the following questions. Experiment with some modifications to the code and rerun the program to see what effect the changes have.
abacusNumber = 0 on line 15 to abacusNumber = 9999?abacusChar.append('O') on line 121 to abacusChar.append('@')?
