This visualization program has a rough physics engine that simulates sand falling through the small aperture of an hourglass. The sand piles up in the bottom half of the hourglass; then the hourglass is turned over so the process repeats.
Figure 36-1 shows what the output will look like when you run hourglass.py.

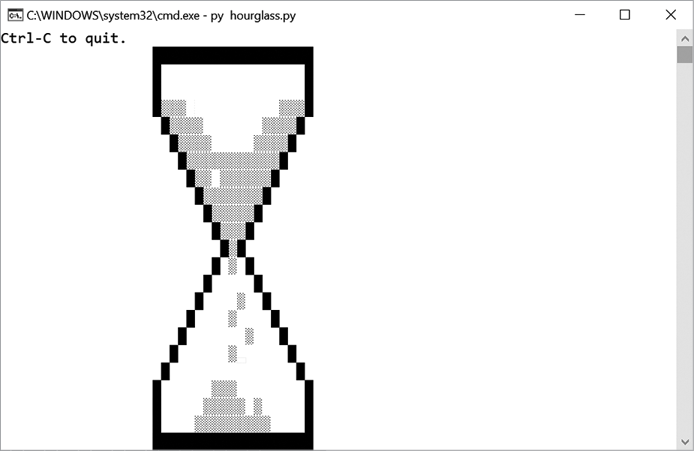

Figure 36-1: The output of the hourglass program with sand falling
The hourglass program implements a rudimentary physics engine. A physics engine is software that simulates physical objects falling under gravity, colliding with each other, and moving according to the laws of physics. You’ll find physics engines used in video games, computer animation, and scientific simulations. On lines 91 to 102, each “grain” of sand checks if the space beneath it is empty and moves down if it is. Otherwise, it checks if it can move down and to the left (lines 104 to 112) or down and to the right (lines 114 to 122). Of course, there is much more to kinematics, the branch of classical physics that deals with the motion of macroscopic objects, than this. However, you don’t need a degree in physics to make a primitive simulation of sand in an hourglass that is enjoyable to look at.
1. """Hourglass, by Al Sweigart [email protected]
2. An animation of an hourglass with falling sand. Press Ctrl-C to stop.
3. This code is available at https://nostarch.com/big-book-small-python-programming
4. Tags: large, artistic, bext, simulation"""
5.
6. import random, sys, time
7.
8. try:
9. import bext
10. except ImportError:
11. print('This program requires the bext module, which you')
12. print('can install by following the instructions at')
13. print('https://pypi.org/project/Bext/')
14. sys.exit()
15.
16. # Set up the constants:
17. PAUSE_LENGTH = 0.2 # (!) Try changing this to 0.0 or 1.0.
18. # (!) Try changing this to any number between 0 and 100:
19. WIDE_FALL_CHANCE = 50
20.
21. SCREEN_WIDTH = 79
22. SCREEN_HEIGHT = 25
23. X = 0 # The index of X values in an (x, y) tuple is 0.
24. Y = 1 # The index of Y values in an (x, y) tuple is 1.
25. SAND = chr(9617)
26. WALL = chr(9608)
27.
28. # Set up the walls of the hour glass:
29. HOURGLASS = set() # Has (x, y) tuples for where hourglass walls are.
30. # (!) Try commenting out some HOURGLASS.add() lines to erase walls:
31. for i in range(18, 37):
32. HOURGLASS.add((i, 1)) # Add walls for the top cap of the hourglass.
33. HOURGLASS.add((i, 23)) # Add walls for the bottom cap.
34. for i in range(1, 5):
35. HOURGLASS.add((18, i)) # Add walls for the top left straight wall.
36. HOURGLASS.add((36, i)) # Add walls for the top right straight wall.
37. HOURGLASS.add((18, i + 19)) # Add walls for the bottom left.
38. HOURGLASS.add((36, i + 19)) # Add walls for the bottom right.
39. for i in range(8):
40. HOURGLASS.add((19 + i, 5 + i)) # Add the top left slanted wall.
41. HOURGLASS.add((35 - i, 5 + i)) # Add the top right slanted wall.
42. HOURGLASS.add((25 - i, 13 + i)) # Add the bottom left slanted wall.
43. HOURGLASS.add((29 + i, 13 + i)) # Add the bottom right slanted wall.
44.
45. # Set up the initial sand at the top of the hourglass:
46. INITIAL_SAND = set()
47. for y in range(8):
48. for x in range(19 + y, 36 - y):
49. INITIAL_SAND.add((x, y + 4))
50.
51.
52. def main():
53. bext.fg('yellow')
54. bext.clear()
55.
56. # Draw the quit message:
57. bext.goto(0, 0)
58. print('Ctrl-C to quit.', end='')
59.
60. # Display the walls of the hourglass:
61. for wall in HOURGLASS:
62. bext.goto(wall[X], wall[Y])
63. print(WALL, end='')
64.
65. while True: # Main program loop.
66. allSand = list(INITIAL_SAND)
67.
68. # Draw the initial sand:
69. for sand in allSand:
70. bext.goto(sand[X], sand[Y])
71. print(SAND, end='')
72.
73. runHourglassSimulation(allSand)
74.
75.
76. def runHourglassSimulation(allSand):
77. """Keep running the sand falling simulation until the sand stops
78. moving."""
79. while True: # Keep looping until sand has run out.
80. random.shuffle(allSand) # Random order of grain simulation.
81.
82. sandMovedOnThisStep = False
83. for i, sand in enumerate(allSand):
84. if sand[Y] == SCREEN_HEIGHT - 1:
85. # Sand is on the very bottom, so it won't move:
86. continue
87.
88. # If nothing is under this sand, move it down:
89. noSandBelow = (sand[X], sand[Y] + 1) not in allSand
90. noWallBelow = (sand[X], sand[Y] + 1) not in HOURGLASS
91. canFallDown = noSandBelow and noWallBelow
92.
93. if canFallDown:
94. # Draw the sand in its new position down one space:
95. bext.goto(sand[X], sand[Y])
96. print(' ', end='') # Clear the old position.
97. bext.goto(sand[X], sand[Y] + 1)
98. print(SAND, end='')
99.
100. # Set the sand in its new position down one space:
101. allSand[i] = (sand[X], sand[Y] + 1)
102. sandMovedOnThisStep = True
103. else:
104. # Check if the sand can fall to the left:
105. belowLeft = (sand[X] - 1, sand[Y] + 1)
106. noSandBelowLeft = belowLeft not in allSand
107. noWallBelowLeft = belowLeft not in HOURGLASS
108. left = (sand[X] - 1, sand[Y])
109. noWallLeft = left not in HOURGLASS
110. notOnLeftEdge = sand[X] > 0
111. canFallLeft = (noSandBelowLeft and noWallBelowLeft
112. and noWallLeft and notOnLeftEdge)
113.
114. # Check if the sand can fall to the right:
115. belowRight = (sand[X] + 1, sand[Y] + 1)
116. noSandBelowRight = belowRight not in allSand
117. noWallBelowRight = belowRight not in HOURGLASS
118. right = (sand[X] + 1, sand[Y])
119. noWallRight = right not in HOURGLASS
120. notOnRightEdge = sand[X] < SCREEN_WIDTH - 1
121. canFallRight = (noSandBelowRight and noWallBelowRight
122. and noWallRight and notOnRightEdge)
123.
124. # Set the falling direction:
125. fallingDirection = None
126. if canFallLeft and not canFallRight:
127. fallingDirection = -1 # Set the sand to fall left.
128. elif not canFallLeft and canFallRight:
129. fallingDirection = 1 # Set the sand to fall right.
130. elif canFallLeft and canFallRight:
131. # Both are possible, so randomly set it:
132. fallingDirection = random.choice((-1, 1))
133.
134. # Check if the sand can "far" fall two spaces to
135. # the left or right instead of just one space:
136. if random.random() * 100 <= WIDE_FALL_CHANCE:
137. belowTwoLeft = (sand[X] - 2, sand[Y] + 1)
138. noSandBelowTwoLeft = belowTwoLeft not in allSand
139. noWallBelowTwoLeft = belowTwoLeft not in HOURGLASS
140. notOnSecondToLeftEdge = sand[X] > 1
141. canFallTwoLeft = (canFallLeft and noSandBelowTwoLeft
142. and noWallBelowTwoLeft and notOnSecondToLeftEdge)
143.
144. belowTwoRight = (sand[X] + 2, sand[Y] + 1)
145. noSandBelowTwoRight = belowTwoRight not in allSand
146. noWallBelowTwoRight = belowTwoRight not in HOURGLASS
147. notOnSecondToRightEdge = sand[X] < SCREEN_WIDTH - 2
148. canFallTwoRight = (canFallRight
149. and noSandBelowTwoRight and noWallBelowTwoRight
150. and notOnSecondToRightEdge)
151.
152. if canFallTwoLeft and not canFallTwoRight:
153. fallingDirection = -2
154. elif not canFallTwoLeft and canFallTwoRight:
155. fallingDirection = 2
156. elif canFallTwoLeft and canFallTwoRight:
157. fallingDirection = random.choice((-2, 2))
158.
159. if fallingDirection == None:
160. # This sand can't fall, so move on.
161. continue
162.
163. # Draw the sand in its new position:
164. bext.goto(sand[X], sand[Y])
165. print(' ', end='') # Erase old sand.
166. bext.goto(sand[X] + fallingDirection, sand[Y] + 1)
167. print(SAND, end='') # Draw new sand.
168.
169. # Move the grain of sand to its new position:
170. allSand[i] = (sand[X] + fallingDirection, sand[Y] + 1)
171. sandMovedOnThisStep = True
172.
173. sys.stdout.flush() # (Required for bext-using programs.)
174. time.sleep(PAUSE_LENGTH) # Pause after this
175.
176. # If no sand has moved on this step, reset the hourglass:
177. if not sandMovedOnThisStep:
178. time.sleep(2)
179. # Erase all of the sand:
180. for sand in allSand:
181. bext.goto(sand[X], sand[Y])
182. print(' ', end='')
183. break # Break out of main simulation loop.
184.
185.
186. # If this program was run (instead of imported), run the game:
187. if __name__ == '__main__':
188. try:
189. main()
190. except KeyboardInterrupt:
191. sys.exit() # When Ctrl-C is pressed, end the program.
After entering the source code and running it a few times, try making experimental changes to it. The comments marked with (!) have suggestions for small changes you can make. On your own, you can also try to figure out how to do the following:
Try to find the answers to the following questions. Experiment with some modifications to the code and rerun the program to see what effect the changes have.
range(18, 37) on line 31 to range(18, 30)?range(8) on line 39 to range(0)?sandMovedOnThisStep = False on line 82 to sandMovedOnThisStep = True?fallingDirection = None on line 125 to fallingDirection = 1?random.random() * 100 <= WIDE_FALL_CHANCE on line 136 to random.random() * 0 <= WIDE_FALL_CHANCE?
